Friday, August 31, 2012

CNC Mold Machining for magnetic plates Resin Casting

Today i CNC machined the molds out of 12mm thick MDF for resin casting of magnetic plates.The tool used was 8mm end mill at 70inch/minute using 3mm per pass depth of cut. The mold machining took 35minutes on the CNC router. The cast resin will help bounding the magnet with the CS plates so that the magnets stay at high RPM.


 Hole drilling started on my home made CNC machine.

 and the rest of the pictures are below.
and the magnetic plate fitted exactly in the MDF mold as desired.
Posted by at 2 comments:

Thursday, August 30, 2012

Wind Mill Fabrication Started

I have been collecting components  for few years for  fabrication of  1KW horizontal axis wind turbine diameter 12 foot. Last year i purchased 24 Magnets Rs.500Ea, a Car wheel hub for making the axial flux generator for the turbine.

Recently did some activities for making this wind turbine functional till the end of September 2012. Structure being fabricated in local market. I have made the CAD model of Wind turbine blades using NACA 2412 profile.

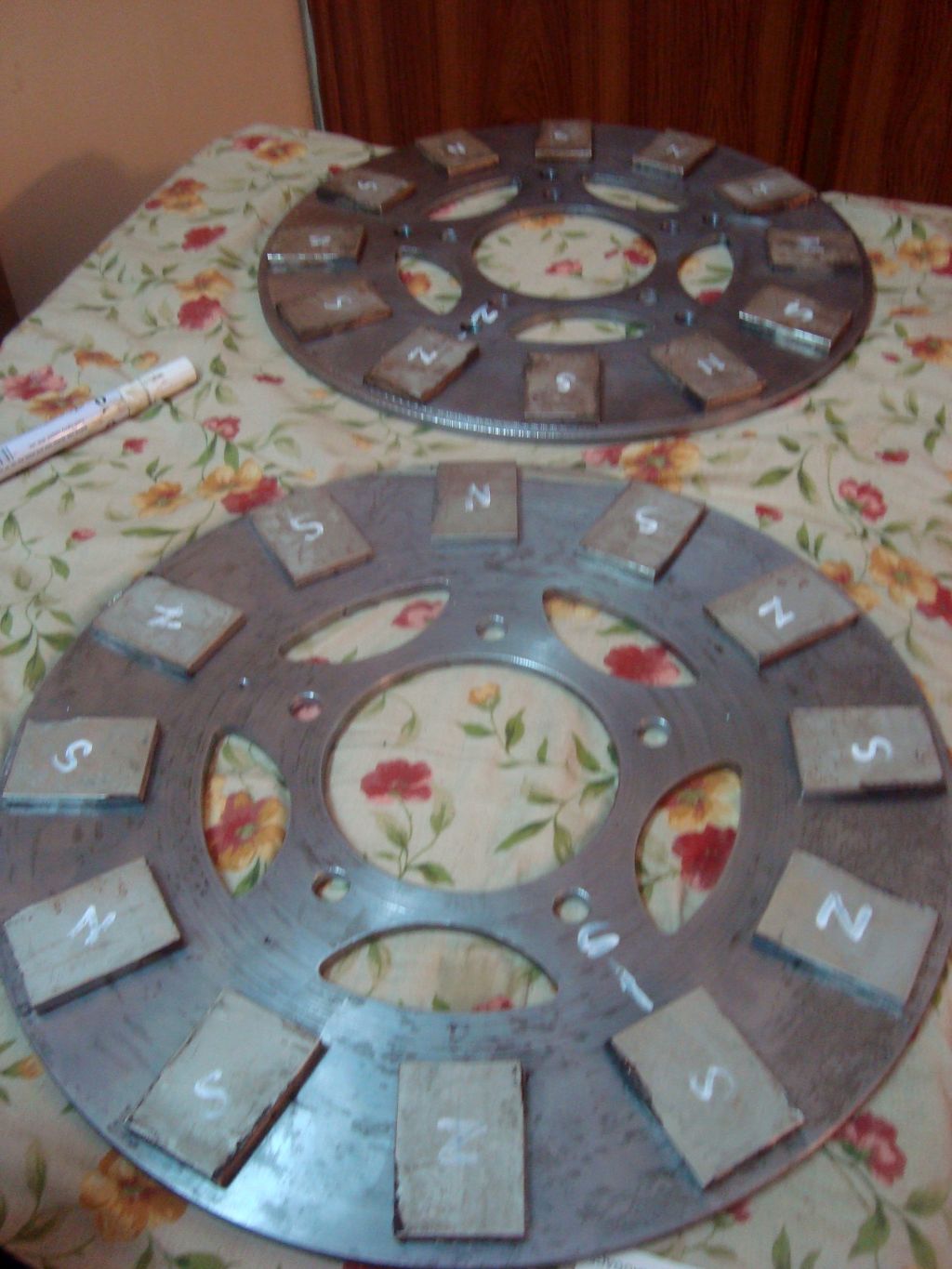

Here is the Magnetic plates of the Axial flux wind turbine.




Here is the average wind speed data and other parameters for Karachi.

Posted by at No comments:

Wednesday, August 29, 2012

Wind Mill (max 1kWatt) Started

Today i got the time to start wind mill project. Last year i collected some of the parts for the win mill including the 24 powerful magnets and car wheel hub.

Posted by at 1 comment:

Thursday, August 23, 2012

More advanced and Compact All New Sun Tracker

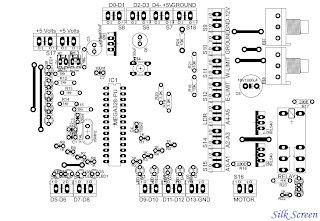

After loosing all the data from crashed hard drive, I started drawing the electronic circuit from scratch.This is all new sun tracker with multiple features. LCD Menu driven and more advanced and compact as compared to previous one.




Some complex programming yet to be carried out:)
